Woven Wire Mesh

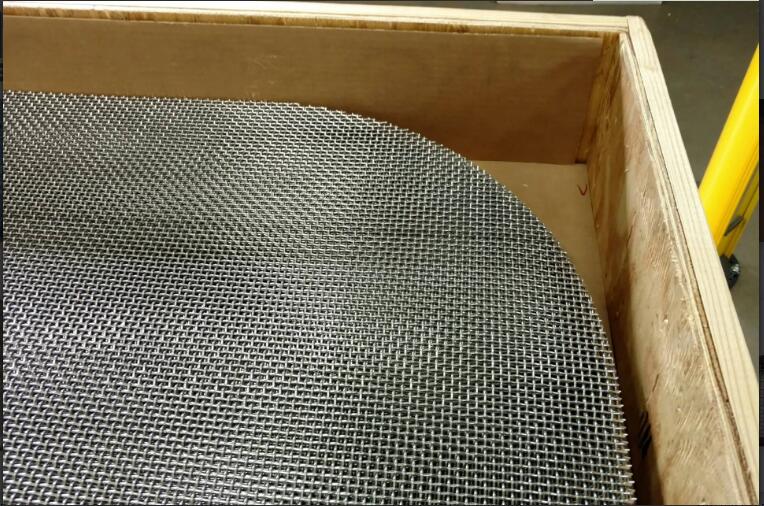

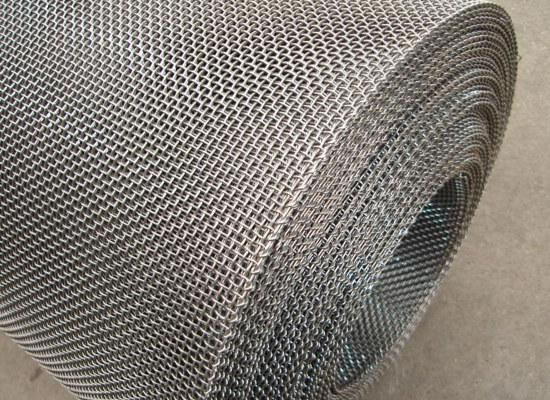

Square Opening Wire Cloth

Materials: 304、304L、316、316L Stainless Steel ,Mild Steel,Galvanized,Brass,Precious Metal and Special Alloy Wire....

Send Email

Materials: 304、304L、316、316L Stainless Steel ,Mild Steel,Galvanized,Brass,Precious Metal and Special Alloy Wire.

Weaving Types: Plain Weave and Twilled Weave.

Plain weave: Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.

Twill Weave: Each weft wire passing alternately over two, and then under two successive warp wires and each warp wire passing alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.

Property: It has good performance of acid-resisting,alkali-resisting,heat-resisting and wear-resisting etc.
Usage: Widely used in petroleum, chemical industry, environment protection, mine, airspace, paper-making,electronic, metallurgy etc.

Mesh Size	Wire Diameter		Aperture		Open ?Area （%）	?Weave Type
Mesh Size	Inch	Mm	Inch	Mm	Open ?Area （%）	?Weave Type
1X1	0.080	2.03	0.920	23.37	84.6	Plain
2X2	0.063	1.60	0.437	11.10	76.4	Plain
3X3	0.054	1.37	0.279	7.09	70.1	Plain
4X4	0.063	1.60	0.187	4.75	56.0	Plain
4X4	0.047	1.19	0.203	5.16	65.9	Plain
5X5	0.041	1.04	0.159	4.04	63.2	Plain
6X6	0.035	0.89	0.132	3.35	62.7	Plain
8X8	0.028	0.71	0.097	2.46	60.2	Plain
10X10	0.025	0.64	0.075	1.91	56.3	Plain
10X10	0.020	0.51	0.080	2.03	64.0	Plain
12X12	0.023	0.584	0.060	1.52	51.8	Plain
12X12	0.020	0.508	0.063	1.60	57.2	Plain
14X14	0.023	0.584	0.048	1.22	45.2	Plain
14X14	0.020	0.508	0.051	1.30	51.0	Plain
16X16	0.018	0.457	0.0445	1.13	50.7	Plain
18X18	0.017	0.432	0.0386	0.98	48.3	Plain
20X20	0.020	0.508	0.0300	0.76	36.0	Plain
20X20	0.016	0.406	0.0340	0.86	46.2	Plain
24X24	0.014	0.356	0.0277	0.70	44.2	Plain
30X30	0.013	0.330	0.0203	0.52	37.1	Plain
30X30	0.012	0.305	0.0213	0.54	40.8	Plain
30X30	0.009	0.229	0.0243	0.62	53.1	Plain
35X35	0.011	0.279	0.0176	0.45	37.9	Plain
40X40	0.010	0.254	0.0150	0.38	36.0	Plain
50X50	0.009	0.229	0.0110	0.28	30.3	Plain
50X50	0.008	0.203	0.0120	0.31	36.0	Plain
60X60	0.0075	0.191	0.0092	0.23	30.5	Plain
60X60	0.007	0.178	0.0097	0.25	33.9	Plain
70X70	0.0065	0.165	0.0078	0.20	29.8	Plain
80X80	0.0055	0.140	0.0070	0.18	31.4	Plain
90X90	0.005	0.127	0.0061	0.16	30.1	Plain
100X100	0.0045	0.114	0.0055	0.14	30.3	Plain
100X100	0.004	0.102	0.0060	0.15	36.0	Plain
100X100	0.0035	0.089	0.0065	0.17	42.3	Plain
120X120	0.0037	0.0940	0.0064	0.1626	30.7	Plain
150X150	0.0026	0.0660	0.0041	0.1041	37.4	Plain
180X180	0.0023	0.0584	0.0033	0.0838	34.7	Plain
200X200	0.0021	0.0533	0.0029	0.0737	33.6	Plain
250X250	0.0016	0.0406	0.0024	0.0610	36.0	Twill
270X270	0.0016	0.0406	0.0021	0.0533	32.2	Twill
300X300	0.0051	0.0381	0.0018	0.0457	29.7	Twill
325X325	0.0014	0.0356	0.0017	0.0432	30.0	Twill
400X400	0.0012	0.0030	0.0013	0.0340	25.0	Twill
500X500	0.0010	0.0254	0.0010	0.0254	25.0	Twill
635X635	0.0008	0.0203	0.0008	0.0203	24.0	Twill
